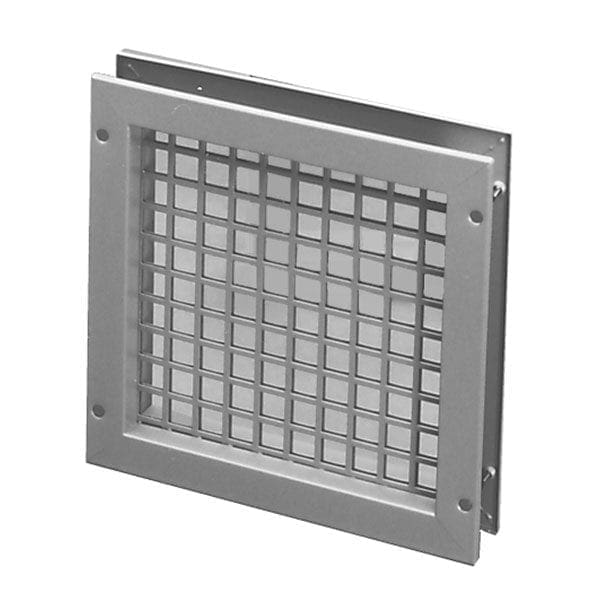

Air Louvers VLF-SG Vision Lite Frame with 12 Gauge Security Grille for 3/16″ to 1/4″ Glass, 1-3/4″ Thick Door


18-gauge steel frame w/ 12-ga. grille on both sides
For 3/16″ to 1/4″ glass (not included)
For 1-3/4″ thick steel or wood doors

Add to Quote
SKU: LK-VL-VLFSG Category:


Security vision lite frame with 12-gauge security grille for 3/16″ to 1/4″ glass, for 1-3/4″ thick doors

Mitered and welded corners with countersunk mounting holes
Security grille welded to frame, on each side
Grille: 12 gauge CRS with 13/16″ square openings 1″ on center
Glass / Glazing Tape Not Included – glazing to be ordered separately from our glazing section. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
Visible light is 2″ under rough opening size. Glass size is 1″ under order size

This product is made to order and non-returnable or refundable.
Call 1-844-Commercial Door and Hardware (844-878-3667) for custom sizes and info on volume discounts
