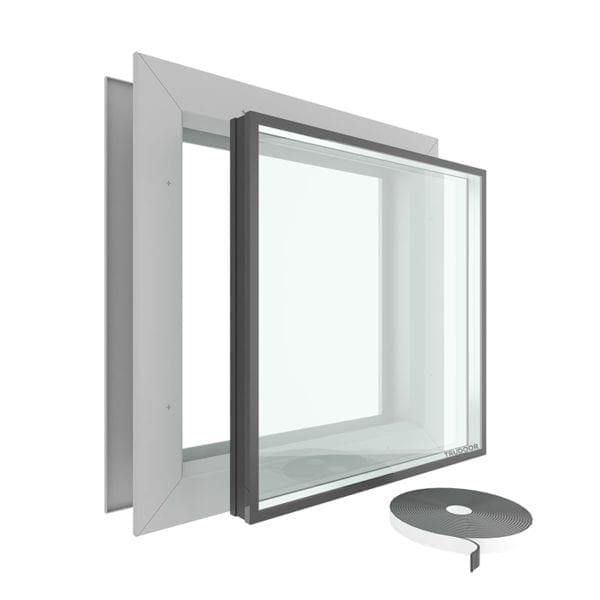

Vision lite frame with 1″ thick insulated glass for commercial doors
Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
Includes 1″ Insulated Glass – Two Panes of tempered glass with a metal spacer in a sealed insulated glass unit – Each Pane: 3/16″ – Clear, colorless, intumescent inter-layer
Glass Approvals: ANSI Z97.1, Class A; and CPSC 16 CFR 1201 Category II
Includes glazing tape
Mitered and welded corners with countersunk mounting holes
1-1/4″ trim with radius corners, mitered and welded.
Continuous glass retainer, countersunk mounting holes on the face of the non-corridor side.
Frame projects 3/8”
Glass is made to order and non-returnable or refundable.
Call 1-844-Commercial Door and Hardware (844-878-3667) for custom sizes
All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.
