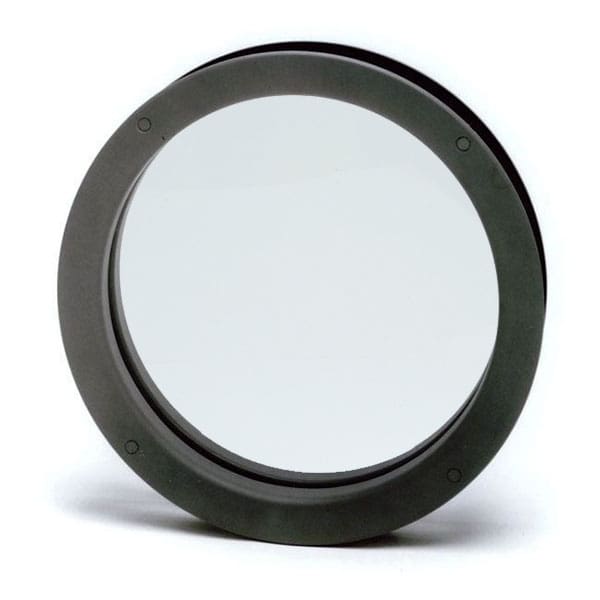

Air Louvers VLFR Round Vision Lite PAK with 1/4″ Clear Tempered Safety Glass


Complete Lite Kit = Frame, Glass, and Glazing Tape
Includes round 1/4″ thick clear tempered safety glass
For use with 1-3/4″ thick steel or wood doors

Add to Quote


Add interest and style to any door with the porthole type VLFR round vision lite kit

Designed for use with 1-3/4″ thick doors.

Circular – one-piece construction with no joints with 90-degree return
18 gauge cold rolled steel frame (mineral bronze finish)
Countersunk mounting holes on both sides
Order size equal to cutout size  (12″, 18″ or 24″ Diameter)
Glass size is 1″ under cutout size, Visible glass is 2″ under
Includes 1/4″ Clear Tempered – CAT II Impact-Rated (Safety Glass) – Heat-treated clear safety glass that breaks into small particles
Tempered Glass – Four Times Stronger Than Annealed Glass
Glass Approvals: ANSI Z97.1, Class A; and CPSC 16 CFR 1201 Category II

All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.
