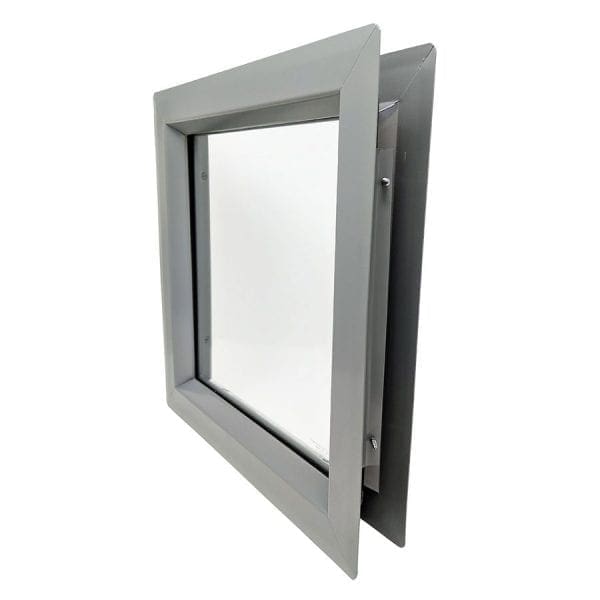

Steel vision lite frame with clear tempered safety glass for 1-3/4″ thick metal and wood doors
Fully tempered glass is four times stronger than annealed glass and is considered a safety glazing material. The strength imparted in the tempering process dramatically increases the ability of fully tempered glass to resist bending forces.
Tempered glass is recommended for all non-fire-rated doors
Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
Includes 1/4″ thick clear tempered CAT II impact-rated glass (heat-treated safety glass that breaks into small particles)
1-1/4″ trim with radius corners, mitered and welded
Continuous glass retainer, countersunk mounting holes in the bevel on the non-corridor side

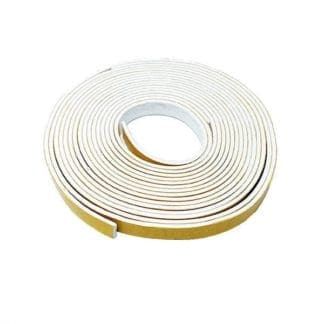

Includes glazing tape

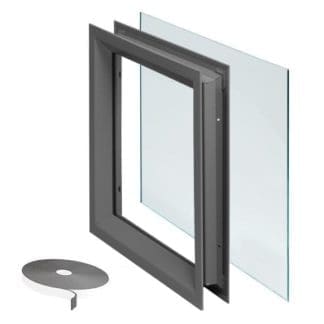

VSL vision lite frame cross-reference models: Advantage 784G, Anemostat Lo Pro, Cal-Royal SVL, National Guard L-FRA100, Rockwood/Pemko LT-B1
Call 1-844-Commercial Door and Hardware (844-878-3667) for custom sizes and colors and info on volume discounts
All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.
