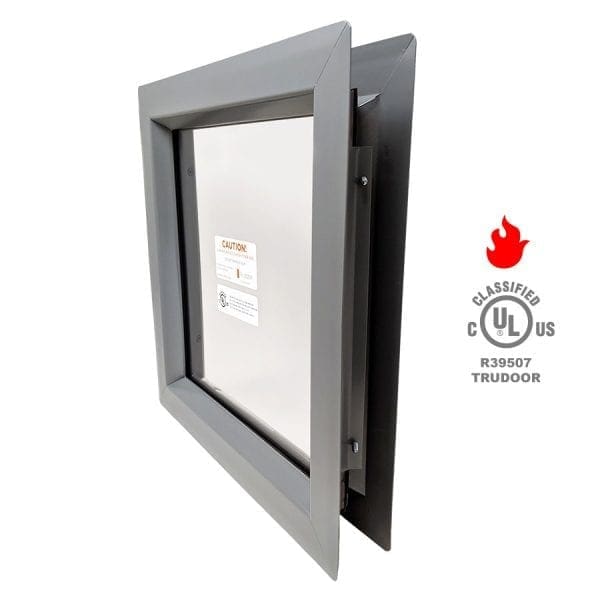

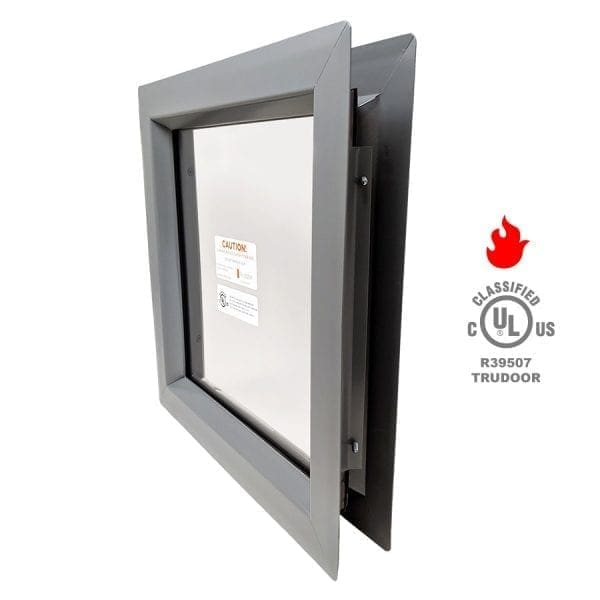

Air Louvers VSL Slimline Vision Lite Kit PAK with 3/16″ Clear PYRAN® Platinum F, 90 to 180 Minute Fire-Rated Safety Glass

$1.00

Complete Lite Kit = Frame, Glass & Glazing Tape
‘Clear’ Pyran® Platinum F Ceramic Glass – *Fire-Rated up to 3 Hours
For 1-3/4″ thick fire-rated metal or wood doors

Add to Quote
SKU: LK-CK-FR-PLT-180 Category:

Description

Vision lite frame with Schott PYRAN® Platinum F fire-protection-rated and impact-safety-rated glass
Pyran Platinum F is a glazing material made from a transparent glass-ceramic with a thickness of 3/16” (5 mm). It has a surface applied safety film and is intended for use in safety-rated locations and high traffic areas requiring fire-rated glazing that have fire-rating requirements for up to 3 hours. It’s perfect for commercial, industrial, or institutional applications including schools and hospitals.

Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
Includes Premium Pyran® Platinum F – Premium-Grade Fire-Rated Ceramic Glass – Transparent and Wireless – Surface-Applied Safety Film
Glass is permanently etched with UL Classification
Closed-cell glazing tape included with every kit
Frame is embossed with UL Label
1-1/4″ trim with radius corners, mitered and welded
Continuous glass retainer, countersunk mounting holes in the bevel on the non-corridor side.



*Sizes Etched with 90 Minute UL Label: 8″ x 32″, 8″ x 36″, 18″ x 18″, 18″ x 24″, 18″ x 30″, 18″ x 32″, 24″ x 24″, 24″ x 30″, 24″ x 32″, 24″x 36″, 24″ x 56″
*Sizes Etched with 180 Minute Label: 12″ x 12″, 5″ x 35″, 6″ x 27″, 7″ x 22″, 8″ x 18″
*Please refer to IBC code Chapter 7 (International Building Code) for fire-rated glass requirements and limitations. Door frame, door, and hardware must also be fire-rated. Fire-rating requirements must match the glazing requirements in order for the assembly to fully meet code requirements. Please refer to the manufacturers’ specifications. Please Consult with your door and frame manufacturer’s procedures, for their maximum glass size tested. Interpretation of building and fire codes may vary. Consult with the local authority having jurisdiction to determine appropriate standards in your area. Commercial Door and Hardware assumes no liability or responsibility for any damage to person or property resulting from or incident to the use of the products that we provide. Commercial Door and Hardware assumes no liability or responsibility for misspecified and/or misordered materials. Glass is cut to order and non-returnable or refundable.

Note: Per NFPA 80 (National Fire Protection Association), field cutting of doors for vision panels or enlarging existing cutouts for vision panels is considered to be a field modification that is NOT allowed.
Commercial Door and Hardware is certified by UL to cut, re-certify and label fire-rated glazing materials. Our facility undergoes routine inspections to verify that modifications are done in compliance with the requirements of the UL specification listings. All material is tested in accordance with NFPA codes and standards. UL file number: R39507

PYRAN® is a registered trademark of SCHOTT AG
VSL vision lite frame cross-reference models: Advantage 784G, Anemostat Lo Pro, Cal-Royal SVL, National Guard L-FRA100, Rockwood/Pemko LT-B1
Glass is cut to order and non-returnable or refundable.
Call 1-844-Commercial Door and Hardware (844-878-3667) for custom sizes and info on volume discounts
All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.
