Air Louvers VSL(G) Galvannealed Slimline Vision Lite Frame for 3/16″ to 1/4″ Glass, 1-3/4″ Thick Door

$1.00

20-gauge galvannealed steel frame
For 3/16″ to 1/4″ glass (glass sold separately)
For use with 1-3/4″ thick steel or wood doors

Add to Quote
SKU: LK-VL-GLV-SLMLINE Category:

Description

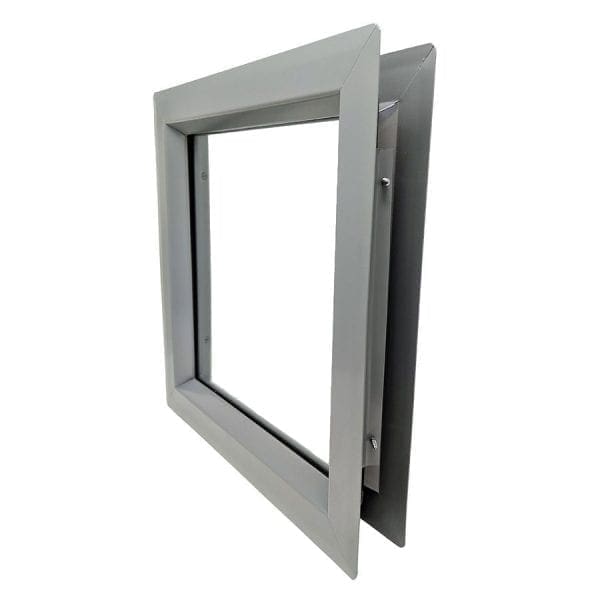

Low profile galvannealed steel vision lite frame for 3/16″ to 1/4″ thick glass, for 1-3/4″ thick doors
Galvannealed steel is ideal for exterior applications.

20-gauge galvannealed steel frame
Mitered and welded corners with countersunk mounting holes
Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
Glass / Glazing Tape Not Included – glazing to be ordered separately from our glazing section. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
1-1/4″ trim with radius corners, mitered and welded
Continuous glass retainer, countersunk mounting holes in the bevel on non-corridor side



Call 1-844-Commercial Door and Hardware (844-878-3667) for custom sizes and info on volume discounts
