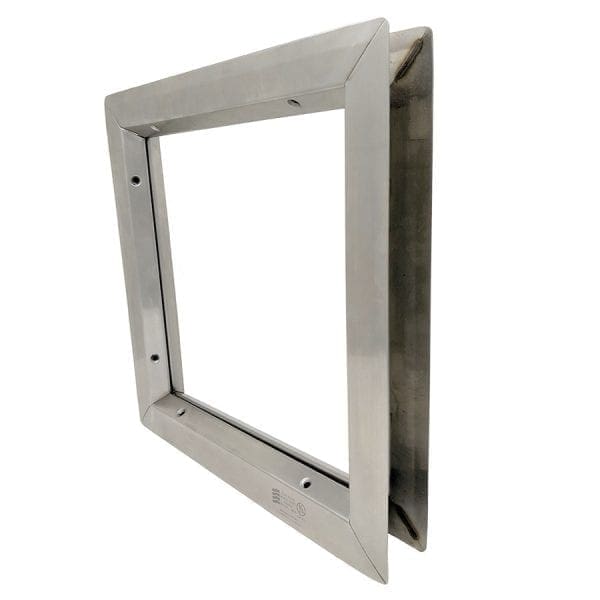

Air Louvers VSLS Stainless Steel Vision Lite Frame for 3/16″ to 1/4″ Glass, 1-3/4″ Thick Door


Stainless Steel Frame – #4 Finish
For 3/16″ to 1/4″ glass (sold separately)
For 1-3/4″ thick steel or wood doors

Add to Quote
SKU: LK-VL-STNL Category:


Stainless steel vision lite frame for 3/16″ to 1/4″ thick glass, for 1-3/4″ thick doors
This vision lite frame is great for corrosive environments and can be installed in exterior doors. Stainless steel is known for its corrosion resistance. Stainless steel doors available.

20 Gauge Stainless Steel #4 Finish
Mitered and welded corners with countersunk mounting holes
Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
Glass / Glazing Tape Not Included – glazing to be ordered separately from our glazing section. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
Visible light is 2″ under rough opening size. Glass size is 1″ under order size
1-1/4″ trim with radius corners, mitered and welded

Call 1-844-Commercial Door and Hardware (844-878-3667) for custom sizes and info on volume discounts
