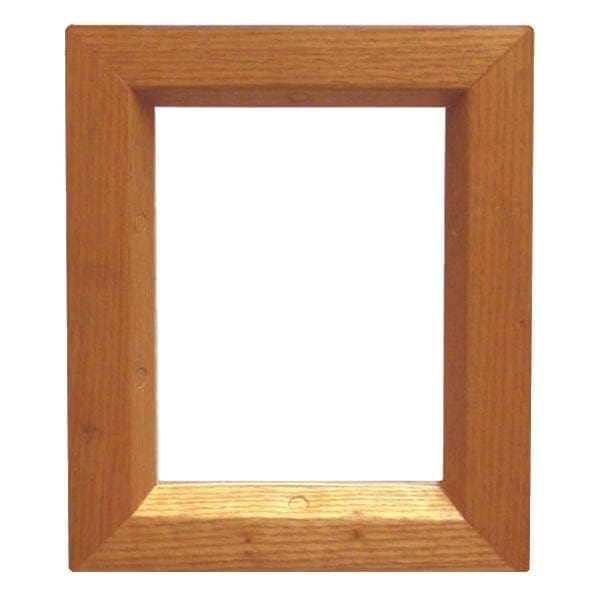

Air Louvers VWL Woodlite Slimline Steel Vision Lite Frame with Wood Veneer for 3/16″ to 1/4″ Glass, 1-3/4″ Thick Door


20-Gauge steel frame w/ .010 unfinished wood veneer
For 3/16″ to 1/4″ glass (sold separately)
For use with 1-3/4″ thick doors

Add to Quote


Low profile wood veneer vision lite for 1-3/4″ thick doors. Ready to be finished with the surface treatment of your choice. Select from 5 wood types.

Self-Attaching, Beveled Vision Lite with Single Side Fasteners. Continuous glass retainer, countersunk mounting holes in the bevel on the non-corridor side.

5 veneer types – .010 unfinished veneer
Wood is raw and does not have a stain, clear coat, or finish – applied by others
Mitered and welded corners with countersunk mounting holes
Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
Glass / Glazing Tape Not Included – glazing to be ordered separately from our glazing section. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
Visible light is 2″ under rough opening size. Glass size is 1″ under order size
1-1/4″ trim with radius corners, mitered and welded

This product is made to order and non-returnable or refundable.
Call 1-844-Commercial Door and Hardware (844-878-3667) for custom sizes and info on volume discounts
