Hollow Metal Sidelite Frame

$1.00

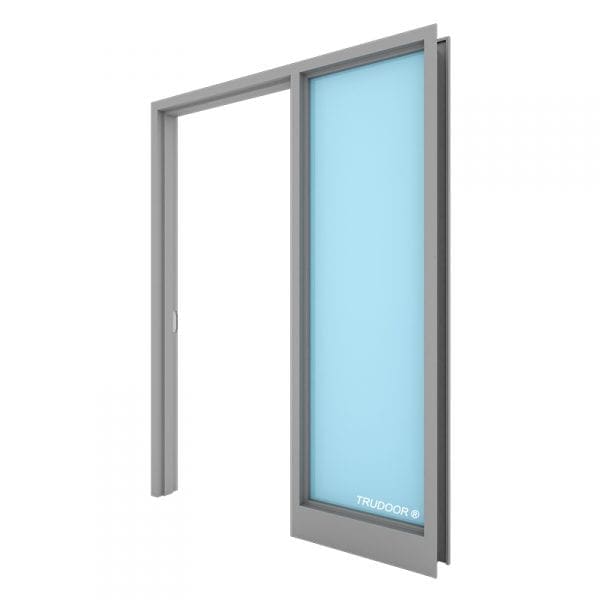

A hollow metal sidelite frame is a door frame which includes a fixed vertical mullion bar and glass adjacent to one or both sides of the door. Steel panels made from hollow metal doors can be used in lieu of glass.

16-Gauge Steel ? Cold Rolled or Galvanized
Available Welded or Knocked Down
Includes Anchors for Any Wall Condition

Add to Quote
SKU: FRM-SDLITE Category:

Description

Steel Sidelite Door Frame for Commercial Applications
Sidelite frames are door frames with glass openings attached to one or both sides of the door opening. The sidelight portion can be partial height of the door opening or extend the entire height of the door. The frame is only the door height. If the frame is greater than the door height, the frame is defined as a transom sidelite frame. Glazing bead (glass stops) are provided with all sidelite frames. Stops install on the inside of the frame to hold the glass in place.
Features

16-Gauge cold rolled steel (galvanized available)
Includes 5/8? glass stops, screws and glazing tape
5 glass type options (optional steel panel in lieu of glass)
Anchors available for any wall condition
Available KD (knocked down) or welded
Vertical or horizontal mullion options ? to divide into multiple sections
Fire-rated up to 90-Minutes with WHI / ITS mylar label applied (optional ? in limited sizes)
