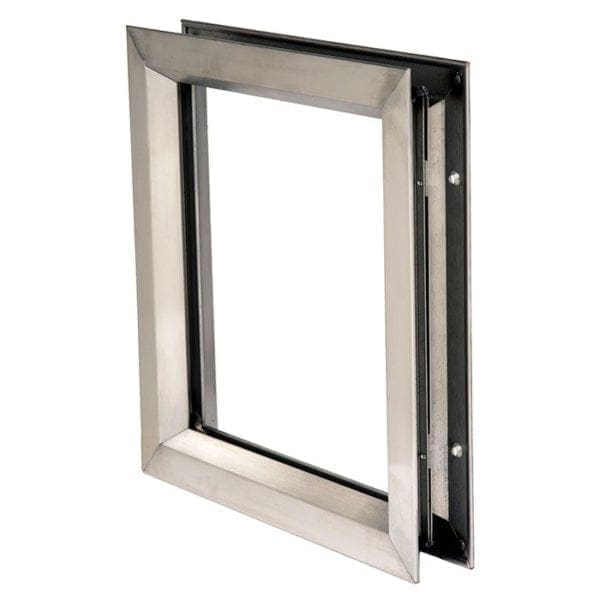

NGP (National Guard) L-CVFM-SS Stainless Steel Vision Lite Frame for 3/16″, 1/4″ or 5/16″ Glass, 1-3/4″ Thick Door

$1.00

18 ga. Type 304 Stainless Steel
For 3/16″, 1/4″ or 5/16″ Glass (Not Included)
For use with 1-3/4″ Doors

Add to Quote
SKU: LK-VL-NG-STEEL Category:

Description

Stainless Steel Lite Kit for 1-3/4″ Thick Doors and 3/16″, 1/4″ or 5/16″ Glass
Stainless steel is known for its corrosion resistance. Stainless steel doors available.

18 ga. Type 304 stainless steel – #4 satin finish
Mitered and welded corners
Countersunk mounting screw-holes
#8 x 1-3/4″ Phillips head SMS
Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
Glass / Glazing Tape Not Included – glazing to be ordered separately from our glazing section. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes
POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C
