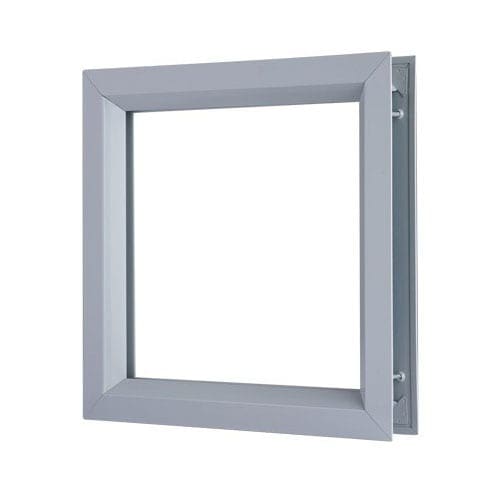

Rockwood LT-B1 Vision Lite Frame for 1/4″ Glass, 1-3/4″ Thick Door


20 gauge steel frame
For 1/4″ thick glass (sold separately)
For use with 1-3/4″ thick steel or wood doors

Add to Quote
SKU: LK-VL-LTB1 Category:


Rockwood LT-B1 Beveled lite kit with 3/8″ glazing pocket for 1/4″ glass – for 1-3/4″ thick doors
For use with glazing material with wood or metal doors. The lite kits install without drilling holes through the door for quick installation. The hemmed design is a flush-mounted assembly and is ideal for clean environments.

Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
Glass / Glazing Tape Not Included – glazing to be ordered separately from our glazing section. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
Classified in accordance with UBC code standard 7-2 for positive pressure
