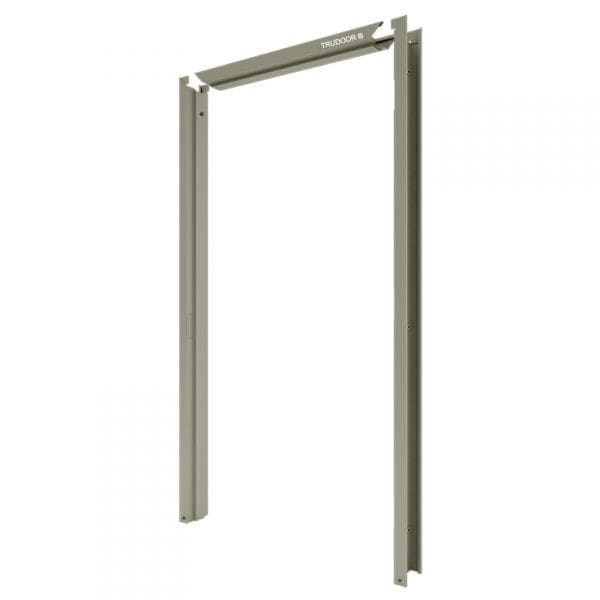

KD Drywall Frame

$1.00

A KD or Knocked Down hollow metal drywall frame (slip-on frame) is used for interior applications and comes in 3 pieces (strike jamb, hinge jamb and head). The KD drywall door frame is designed to be installed after the stud wall has been built and drywall applied, as it wraps the wall.

Easy to install ? simply wrap built stud wall
Fire-Rated up to 90 Minutes (1-1/2 Hour Label)
Standard Jamb Depths of 4-3/4? to 8-1/4?

Add to Quote
SKU: FRM-KD-DW Category:

Description

3-Piece Knocked Down Drywall Frame for Stud Walls ? Commercial Hollow Metal Door Frame
The knocked down drywall frame is for interior stud walls and for use with steel or wood doors. Drywall frames are designed for light to heavy duty applications in both commercial and institutional buildings. Frames are installed in rough openings after the wall has been constructed and finished. They are supplied with a KD (knock-down) corner for quick installation.
Features

16-Gauge cold rolled steel
Pair frames available for double doors
Includes screw adjusting compression anchors (compresses against stud)
Sill attachment is made through the frame face, directly into the wall sill runner; frame is supplied with factory countersunk holes for screw attachment
Hardware preparations and reinforcements are in accordance with ANSI A250.6.
Recommended for interior applications only
Fire-rated up to 90-Minutes with WHI / ITS mylar label applied
