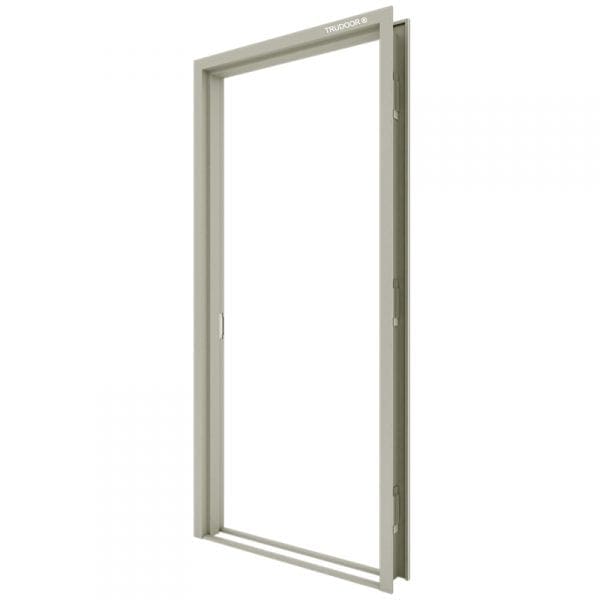

Welded Metal Frame


A welded hollow metal door frame can be used for both interior and exterior applications. Anchors are provided for any wall condition, whether new or existing. Frames are assembled, squared, welded, ground smooth and prime painted. Welded corners provide a smooth seamless appearance.

16-Gauge Steel ? Fire-Rated up to 3 Hours
Anchors for New or Existing Walls (Stud or Masonry)
4-3/4? to 8-3/4? Jamb Depth (Custom Profiles Available)

Add to Quote
SKU: FRM-WLD Category:


Welded Hollow Metal Door Frame for Commercial Applications
3-sided flush frames are designed to meet requirements for standard to maximum duty applications including commercial, industrial and institutional buildings. They are installed in both interior and exterior locations, and in virtually all types of buildings and wall constructions. Anchors are provided for new or existing walls.

16 Gauge cold rolled steel (galvanized available)
WGS ? Assembled Frame: Squared, Welded Face Corners & Ground Smooth
Includes welded-on spreader bars to serve as bracing during shipping (remove prior to installation)
Pair frames available for double doors
Universal hinge preparations allow for easy field conversion from standard weight .134? thick hinges to heavy weight .180? hinges
Hardware preparations and reinforcements are in accordance with ANSI A250.8-2014 (SDI 100)
Fire-rated up to 3-Hours with WHI / ITS mylar label applied
