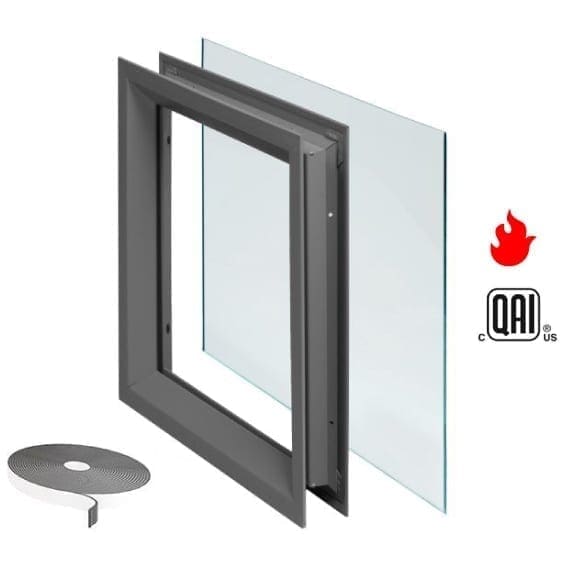

NGP (National Guard) L-FRA100 Lite Kit with 1/4″ Clear TEMP20, 20 Minute Fire-Rated Tempered Safety Glass


Complete Lite Kit = Frame, Glass & Glazing Tape
Includes TEMP20 (tempered 20-minute fire-protective glass)
For use with 1-3/4″ thick fire-rated steel or wood doors

Add to Quote
SKU: LK-CK-NG-FR-CLRTMP-20 Category:


Low Profile Lite Kit for 1-3/4″ Thick Doors with TEMP20 Glass and Glazing Tape

Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
Includes TEMP20 – a clear fire-rated and impact-safety-rated tempered glass for 20-minute fire doors
Closed-cell glazing tape included with every kit
18 ga. cold rolled steel frame
Frame is embossed with UL Label
Glass is permanently etched with fire and impact safety classification
Certified by QAI to ANSI/UL10B, ANSI/UL10C
This glass is cut to size then heat treated (tempered) to achieve its safety rating properties
Meets NFPA 80 requirements for certification and labeling

Classified and labeled by QAI Laboratories. All fire tests performed in accordance with UL 10C (positive pressure, without hose stream) NFPA 252, NFPA 80. All listing information is subject to change.
Note: Per NFPA 80 (National Fire Protection Association), field cutting of doors for vision panels or enlarging existing cutouts for vision panels are considered to be a field modification that is NOT allowed.
Call 1-844-Commercial Door and Hardware (844-878-3667) for custom sizes and info on volume discounts
All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.
