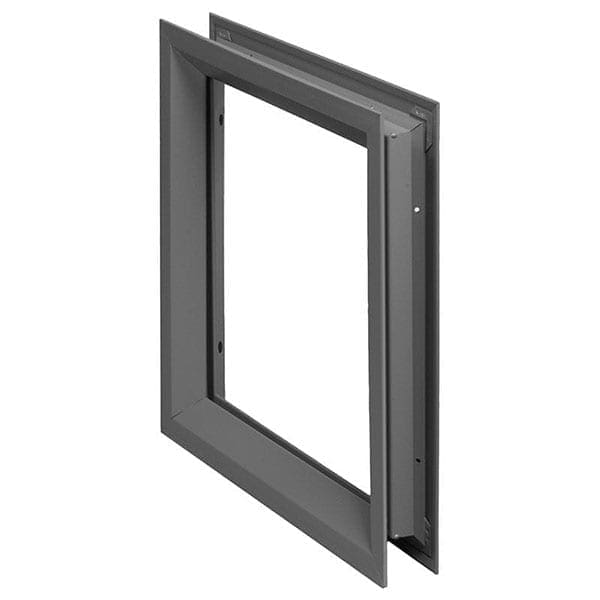

NGP (National Guard) L-FRA100 Vision Lite Frame for 3/16″, 1/4″ or 5/16″ Glass, 1-3/4″ Thick Door


18-Gauge Steel Frame
For 3/16″, 1/4″ or 5/16″ Glass (Not Included)
For 1-3/4″ Thick Steel or Wood Doors

Add to Quote
SKU: LK-VL-FRA100 Category:


Low Profile Lite Kit for 1-3/4″ Thick Doors and 3/16″, 1/4″ or 5/16″ Glass

Mitered and welded corners with countersunk mounting holes
Welded reinforcing clips at corners
Standard Gray Primer (GPZ) finish
Dark Bronze (DKB) in limited stock sizes
Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
Glass / Glazing Tape Not Included – glazing to be ordered separately from our glazing section. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.

Custom features at additional cost and lead time (3-4 Weeks):

Custom sizes: Minimum 3″ width or height; maximum 88″ width or height
Special powder coat colors: (Dark Bronze, Tan, Steelcraft Beige, White, Matte Black, Gloss Black, Aluminum Silver, Walnut Brown (matches Timely Browntone) and Magnolia White (matches Timely Western White)
Galvanneal or Aluminum Material
Lead Lining

Call us at 1-844-878-3667 to order custom vision lite frames
